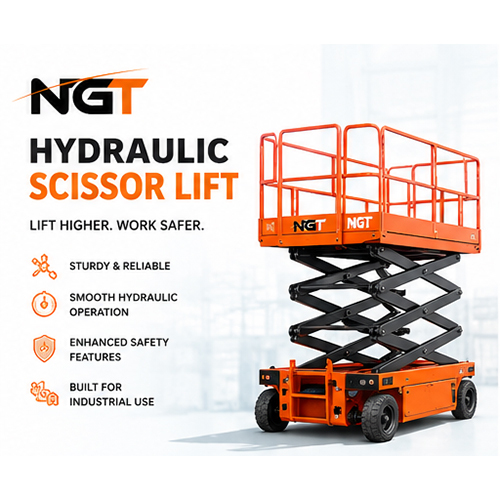

Hydraulic scissor lift

Get a Price/Quote

MOQ : 1 Piece

Hydraulic scissor lift Specification

Inclination
0 (vertical lift)

Hoist Way Size
Customizable as per site needs

Overhead Height
Min. 2500 mm (varies as per application)

Usage
Material handling, warehouse, loading bay, car lift, industrial applications

Noise Level
<65 dB

Voltage
220V/380V, 50Hz/60Hz (as per requirement)

Machine Room Size
Not required (machine-roomless design)

Car Dimension
Customizable (Standard: 2000 mm x 1200 mm, other sizes on request)

Type
Stationary hydraulic scissor lift

Load Capacity
300 kg - 2000 kg

Door Opening Size
According to platform size, customizable

Pit Depth
200 mm to 350 mm as per capacity and lift height

Material
High-strength steel with anti-corrosion painting

Drive Type
Hydraulic actuated

Power Supply
Electric powered with hydraulic pump

Speed
4-6 meters per minute (depending on model)

Max. Lifting Height
Up to 18 meters

Max. Lifting Weight
2000 kg

Mechanism Type
Double or multi-scissor lifting mechanism

Working Temperature
-10C to +45C

Control Device
Handheld remote control or control panel

Safety Device
Emergency stop, mechanical locks, overload relief valve

Capacity
300 kg to 2000 kg (standard options, customizable available)

Platform Surface
Anti-slip chequered plate

Lifting Method
Electric hydraulic power unit

Hydraulic Cylinder
High quality, high pressure-resistant cylinder

Lowering System
Manual lowering with safety valve in case of power failure

Power Consumption
1.1 kW - 4.0 kW, model dependent

Color
Blue/Yellow/Custom paint available

Control Voltage
24V for safety operation

Installation Mode
Pit mounted or surface mounted

Oil Tank Capacity
30L to 80L (depend on model)

Mobility
Stationary (option for mobile with wheels)

Safety Railing
Provided on request

Hydraulic scissor lift Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
3 Days

About Hydraulic scissor lift

Discover the hot-selling Hydraulic Scissor Lift, acclaimed with favorable reviews for its transcendent performance and breathtaking efficiency in material handling. Constructed from high-strength steel and anti-corrosion finish, it utilises a robust electric hydraulic power unit, paired with an anti-slip chequered plate for utmost safety. With ineffable reliability, features such as emergency stop, overload protection, and manual lowering system exemplify its superior safety. Custom paint options, power configurations, and platform dimensions ensure it's perfectly tailored to your requirements. Utilise offer now for advantage in warehouses, loading bays, and industrial applications across India.

Advanced Features & Versatile Application

The Hydraulic Scissor Lift is engineered for seamless operation with an anti-slip chequered platform, high-quality cylinders, and manual safety controls. Ideal for general lifting, vehicle transport, warehouse logistics, and industrial installations, this stationary lift can also be configured for mobility. Its special features include customizable sizes, safety railing upon request, and operation via hand remote or control panel. Working at vertical inclinations up to 18 meters, it proves invaluable for manufacturers, warehouses, and loading bays.

Swift Delivery & Quality Assurance

We supply hydraulic scissor lifts swiftly to the domestic and export markets, ensuring prompt delivery to match project timelines. Certified for safety and reliability, each unit undergoes stringent quality checks in compliance with industry standards. Standard packaging includes secure wrapping and robust crating for safe transit. Whether shipping within India or exporting overseas, our dedicated logistics team efficiently handles all packaging and delivery requirements, catering to both industrial and commercial clients.

FAQ's of Hydraulic scissor lift:

Q: How do I operate the hydraulic scissor lift safely?

A: The hydraulic scissor lift is equipped with a handheld remote control or control panel, operated at a 24V safety voltage. For enhanced protection, features include emergency stop, mechanical locks, and overload relief valves.

Q: What are the main applications for this hydraulic scissor lift?

A: This scissor lift is ideal for material handling, car lifting, warehouse tasks, and loading bay operations, benefiting manufacturers, service providers, and suppliers in various industrial applications.

Q: Where can the lift be installed?

A: The hydraulic scissor lift can be installed either pit-mounted or surface-mounted, flexibly catering to different site conditions and operational needs.

Q: What safety features are incorporated in the lift?

A: Safety is paramount, with features including anti-slip platform, emergency stop, safety railing (on request), overload protection, manual lowering with safety valve for power cuts, and robust mechanical locks.

Q: When can I expect delivery after placing an order?

A: Delivery timelines depend on customization and location, but we ensure timely supply to both domestic and export markets, with prompt handling and secure packaging.

Q: How do I customise the lift size or capacity for my project?

A: Simply specify your requirements for platform size, hoist way, car dimension, or load capacity at order placement-our team will tailor the hydraulic scissor lift accordingly.
